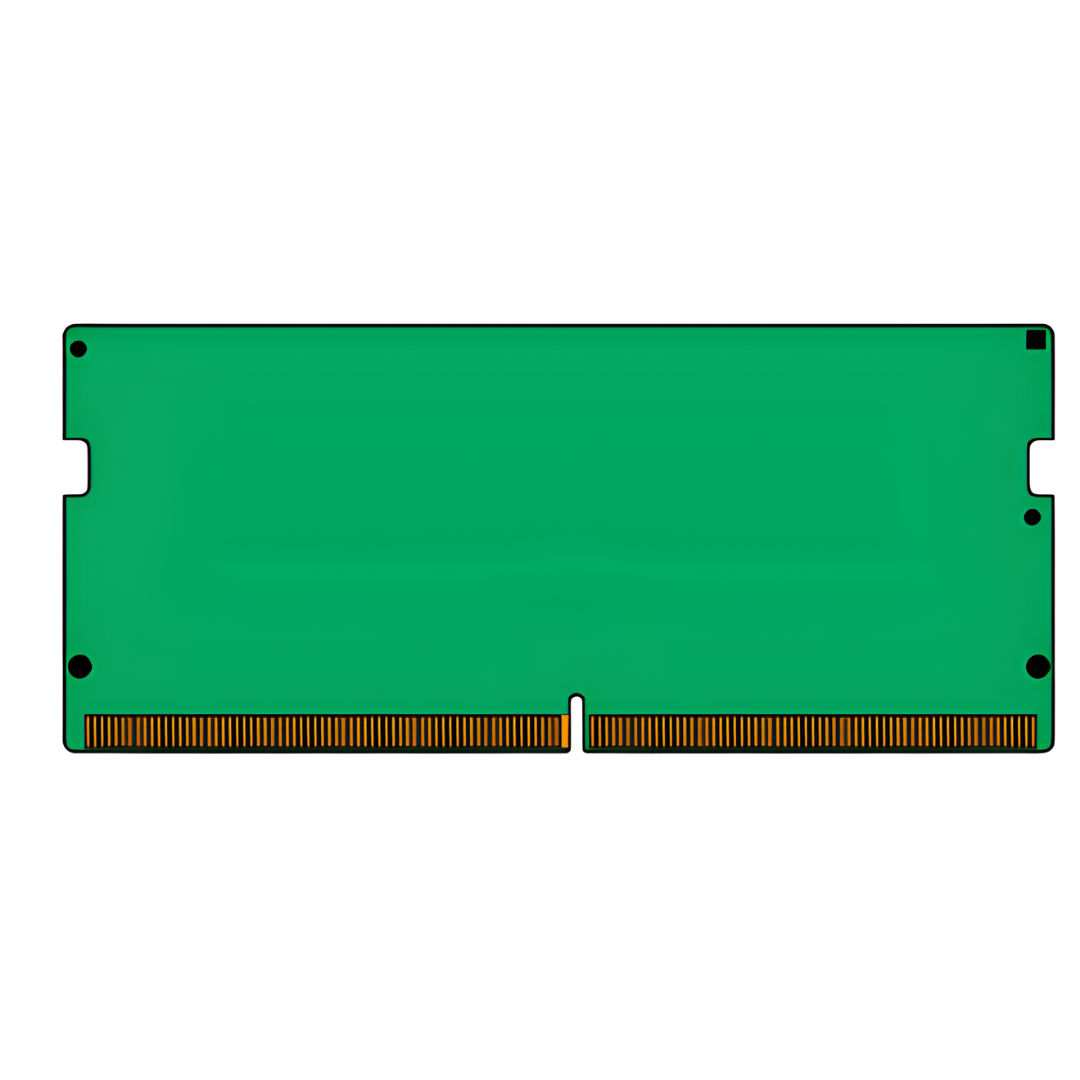

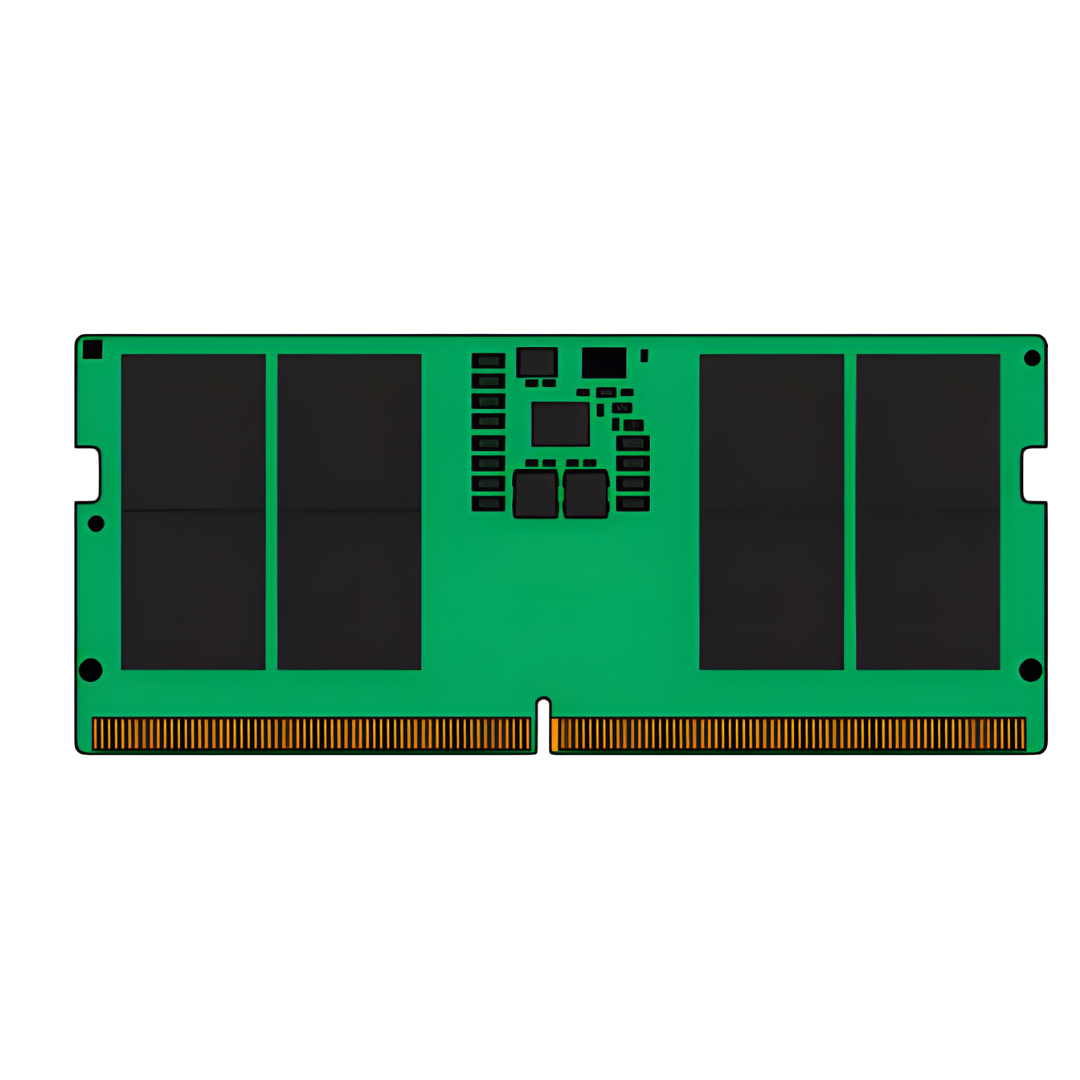

KVR56S46BS8-16 16GB 1Rx8 2G x 64-Bit PC5-5600 CL46 262-Pin SODIMM

KVR56S46BS8-16 16GB 1Rx8 2G x 64-Bit PC5-5600 CL46 262-Pin SODIMM
KVR56S46BS8-16 16GB 1Rx8 2G x 64-Bit PC5-5600 CL46 262-Pin SODIMM - Image 2
KVR56S46BS8-16 16GB 1Rx8 2G x 64-Bit PC5-5600 CL46 262-Pin SODIMM - Image 3

KVR56S46BS8-16 16GB 1Rx8 2G x 64-Bit PC5-5600 CL46 262-Pin SODIMM

Category

Segment :

Laptop RAM

Generation / Form Factor:

DDR5 SODIMM
Contact on Whatsapp

Description

Description

This document describes ValueRAM’s KVR56S46BS8-16 is a 2G x 64-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:



Features

  • Power Supply: VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • VPP = 1.8V Typical
  • VDDSPD = 1.8V to 2.0V
  • On-Die ECC
  • PCB: Height 1.18″ (30.00mm)
  • RoHS Compliant and Halogen-Free

Specifications

CL(IDD) 46 cycles
Row Cycle Time (tRCmin) 48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin) 295ns(min.)
Row Active Time (tRASmin)
