| Processor |
- Intel® Core™ Ultra 5 225 (E-cores up to 4.40 GHz, P-cores up to 4.90 GHz, 10 Cores, 10 Threads, 20 MB Cache)
- Intel® Core™ Ultra 5 235 with vPro® (E-cores up to 4.40 GHz, P-cores up to 5.00 GHz, 14 Cores, 14 Threads, 24 MB Cache)
- Intel® Core™ Ultra 5 245 with vPro® (E-cores up to 4.50 GHz, P-cores up to 5.10 GHz, 14 Cores, 14 Threads, 24 MB Cache)
- Intel® Core™ Ultra 5 245K with vPro® (E-cores up to 4.60 GHz, P-cores up to 5.20 GHz, 14 Cores, 14 Threads, 24 MB Cache)
- Intel® Core™ Ultra 7 265 with vPro® (E-cores up to 4.60 GHz, P-cores up to 5.20 GHz, 20 Cores, 20 Threads, 30 MB Cache)
- Intel® Core™ Ultra 7 265K with vPro® (E-cores up to 4.60 GHz, P-cores up to 5.40 GHz, 20 Cores, 20 Threads, 30 MB Cache)
- Intel® Core™ Ultra 9 285 with vPro® (E-cores up to 4.60 GHz, P-cores up to 5.40 GHz, 24 Cores, 24 Threads, 36 MB Cache)
- Intel® Core™ Ultra 9 285K with vPro® (E-cores up to 4.60 GHz, P-cores up to 5.50 GHz, 24 Cores, 24 Threads, 36 MB Cache)
|
| Operating System |
Windows 11 Pro
Linux |
| NPU |
Up to 36 trillion operations per second (TOPS) AI performance |
| Graphics |
- Integrated Intel® Graphics
- NVIDIA® RTX™ A400 4GB GDDR6
- NVIDIA® RTX™ A1000 8GB GDDR6
- NVIDIA® RTX™ 2000 Ada Generation 16GB GDDR6
- NVIDIA® RTX™ 4000 Ada Generation 20GB GDDR6
- NVIDIA® RTX™ 5000 Ada Generation 32GB GDDR6
- NVIDIA® RTX PRO™ 2000 Blackwell (16GB) GDDR7
- NVIDIA® RTX PRO™ 4000 Blackwell (24GB) with ECC GDDR7
- NVIDIA® RTX PRO™ 4500 Blackwell (32GB) with ECC GDDR7
- NVIDIA® RTX PRO™ 5000 Blackwell (48GB) with ECC GDDR7
|
| Memory |
- Up to 192GB DDR5*, 5600MT/s* (UDIMM)
- Up to 256GB DDR5, 6400MT/s* (CUDIMM)
- 128GB DDR5, 4400MT/s*, (UDIMM)
*Memory spec frequency listed; system support frequency may vary by configuration |
| Storage |
Primary: Up to 2TB M.2 PCIe NVMe SSD Gen5 performance
Up to 7 total drives:
Max M.2 = x 4 (16TB)**
Max 2.5″ = x 3 (23TB) or 3.5″ = x 3 (36TB)
Up to 6 total drives:
Max M.2 = x 2 (8TB)**
Max 2.5″ = x 4 (30TB) or 3.5″ = x 4 (48TB)
Storage Type Capacity*:
Up to 4TB M.2 PCIe NVMe SSD
Up to 7.86TB 2.5″ SATA SSD
Up to 12TB 3.5″ SATA HDD
*Any combination of storage to equal maximum storage drives; Total storage dependent on PSU selected.
**Optional M.2 Add In Card (up to 1 x 4TB) adds additional storage. |
| RAID |
M.2 = 0 / 1 / 5
SATA = 0 / 1 / 5 / 10 |
| Audio |
Realtek® |
| Power Supply Unit |
1100W (92% energy-efficient)
750W (92% energy-efficient)
500W (92% energy-efficient) |
| Ports / Slots |
Front:
- 2 x USB-A (USB 5Gbps)
- 2 x USB-A (USB 10Gbps)
- USB-C® (USB 20Gbps) data transfer only
- Headphone / mic combo & Microphone
- Optional: 3-in-1 media card reader
Rear:
- HDMI® 2.1 (supports resolution up to 4K@60Hz)
- 2 x DisplayPort™ 1.4
- 2 x USB-A (USB 5Gbps) one with keyboard power on
- Ethernet (RJ45) & Audio out
- Optional: 2 x USB-A (hi-speed USB)
Optional Expansion Slots: Serial port, Expansion cards, Flex IO (supports one optional port from HDMI®, VGA, USB-C® with DP functionality & DisplayPort™).
*USB port transfer speeds are approximate and vary by configuration. |
| Wireless |
Optional WLAN*:
WiFi 7 BE200 802.11BE (2 x 2)
Bluetooth® 5.4 vPro
*WiFi 7 requires Windows 11 OS, compatible router, and regional support. |
| Dimensions (H x W x D) |
415mm x 180mm x 370mm / 16.34″ x 7.09″ x 14.57″ |
| Weight |
Starting at 8.65kg / 19.07lbs |
| Color |
Black |
| Material |
• 95% PCC used in front bezel
• 90% EPE used in cushion
• Plastic-free packaging with 90% recycled/FSC-certified content |
| Certifications |
ENERGY STAR®*, RoHS, TCO 10.0, EPEAT® Gold with Climate+
*Available on select model configurations. |
| ThinkShield Security |
dTPM 2.0, BIOS Administrator/Power-on passwords, UEFI Secure Boot, Self-healing BIOS, Kensington Security Slot™, Padlock Loop.
Optional: Chassis intrusion switch, Cable lock, E-lock. |
| ISV Certifications |
Altair, ANSYS, Autodesk, AVID, Barco, Bentley, Dassault, McKesson, Nemetschek, PTC, Siemens. |
| Preloaded Software |
Lenovo Commercial Vantage, Office 365 (trial) |
| What’s in the Box |

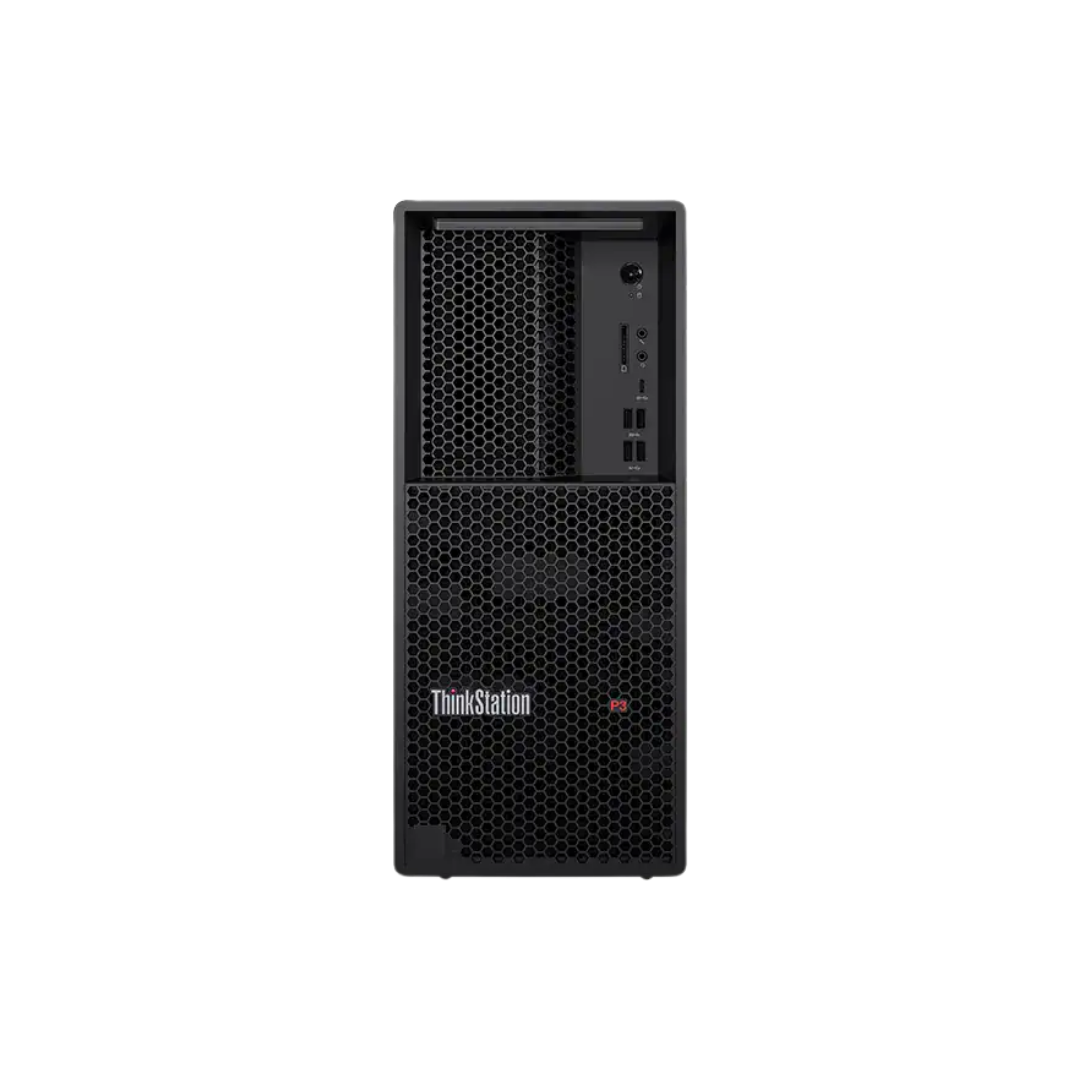

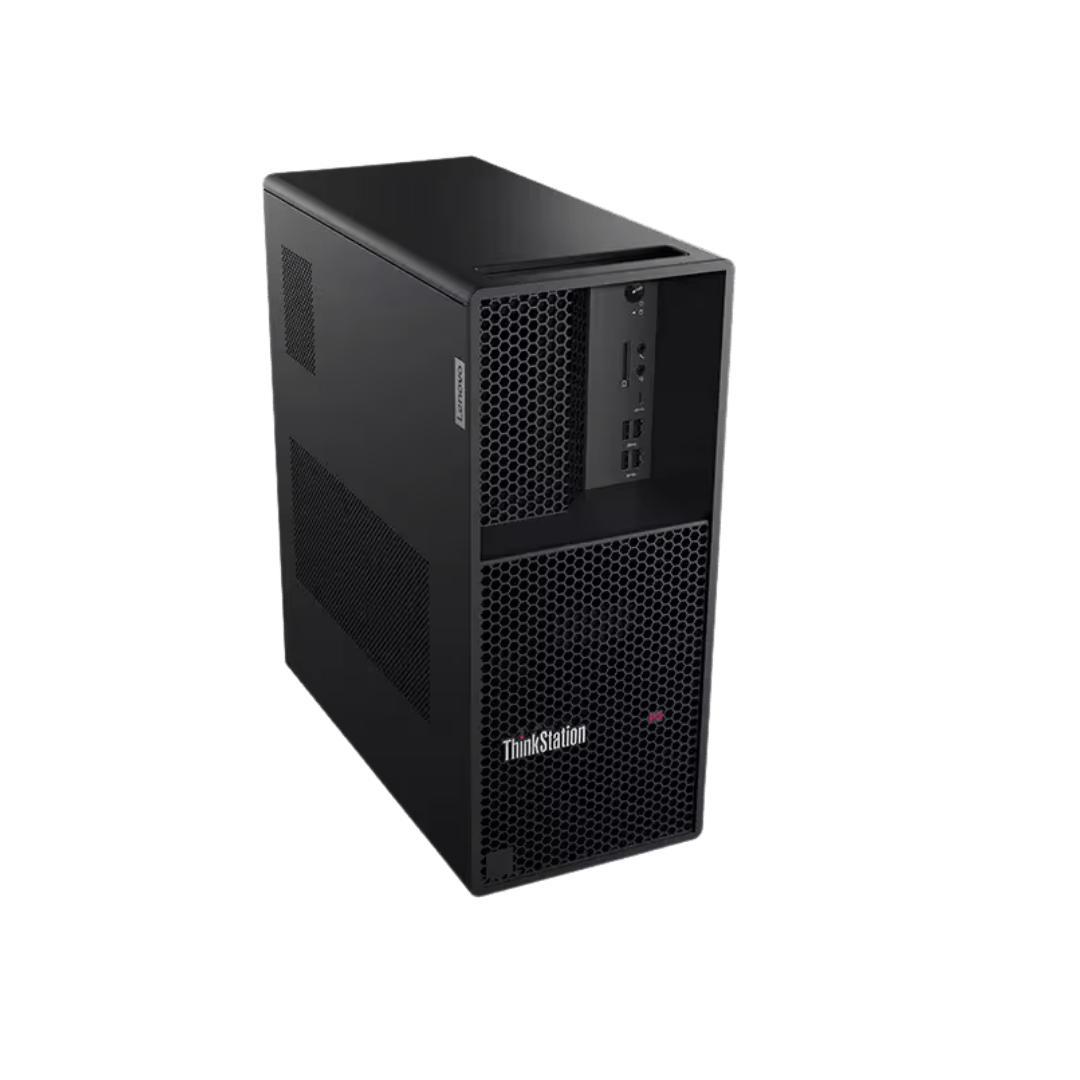

- ThinkStation P3 Tower Gen 2 (Intel)
- USB Keyboard & USB Mouse
- Quick Start Guide
|
