Description
| Specifications | |
|---|---|
| General | |

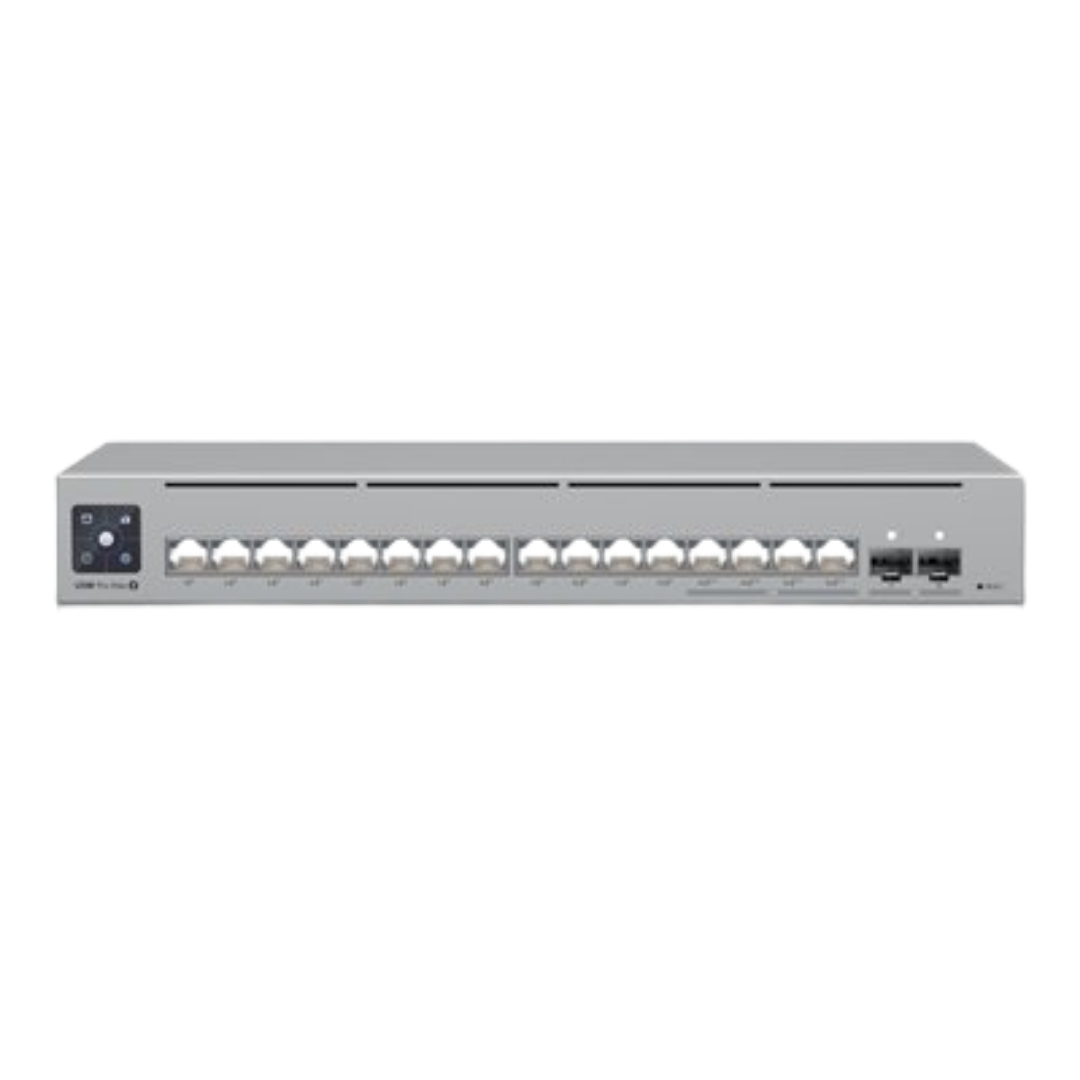

| Device Type | Switch – 16 ports – L3 – managed |
| Enclosure Type | Desktop, rack-mountable 1U |
| Ports | 12 x 10/100/1000 (12 PoE+, 4 PoE++) + 4 x 2.5GBase-T + 2 x 10 Gigabit Ethernet |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 180 W |
| Performance | Non-blocking switching throughput: 42 Gbps ¦ Switching capacity: 84 Gbps ¦ Forwarding rate: 62.496 Mpps |
| Routing Protocol | STP, RSTP |
| Features | Steel housing, reset button, IGMP snooping, port disable, RSTP support, port isolation, Storm Control, Voice VLAN, port mirroring, port aggregation, LACP, multicast/broadcast rate limiting, MAC address authentication, flow control, 802.1x authentication, Jumbo Frames support, loop protection, DHCP snooping, DHCP protection, egress rate limiting, LLDP-MED, ACL support, DHCP relay, Inter-VLAN Routing, static routing, Etherlighting ports, LED status indicators, VLAN support, PoE+, PoE++ |
| Compliant Standards | IEEE 802.1x |
| Built-in Devices | 1.3″ touch screen display |
| Status Indicators | RPS (Redundant Power Supply), status, link/activity/speed |
| Expansion / Connectivity | |
| Interfaces | 12 x 10/100/1000 Base-T RJ-45 ¦ 4 x 2.5GBase-T RJ-45 ¦ 2 x 10GBase-T SFP+ |
| Power | |
| Power Device | Internal power supply |
| Power Provided | 210 Watt |
| Voltage Required | DC |
| Power Consumption Operational | 30 Watt |
| Miscellaneous | |
| Included Accessories | Rack mount kit, power cord |
| Compliant Standards | SGCC, FCC, IC |
| Dimensions & Weight | |
| Width | 12.8 in |
| Depth | 6.3 in |
| Height | 1.7 in |
| Weight | 4.63 lbs |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
